Wollaston Polarizer

  • MgF2 GRP: Wavelength Range 130-7000nm
  • a-BBO GRP: Wavelength Range 190-3500nm
  • Quartz GRP: Wavelength Range 200-2300nm
  • YVO4 GRP: Wavelength Range 500-4000nm
  • Surface Quality: 20/10 Scratch/Dig
  • Beam Deviation: < 3 arc minutes
  • Wavefront Distortion: <λ/4@633nm
  • Damage Threshold: >200MW/cm2@1064nm, 20ns, 20Hz
  • Coating: P Coating or AR Coating
  • Mount: Black Anodized Aluminium
  • Product Detail

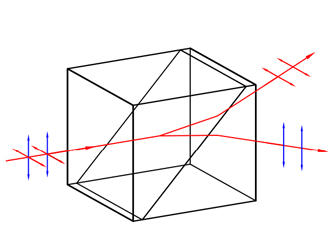

    Wollaston polarizer is designed to separate unpolarized light beam into two orthogonally polarized ordinary and extraordinary components which are symmetrically deflected from axis of initial propagation. This kind of performance is attractive for laboratory experiments as both ordinary and extraordinary beams are accessible. Wollaston polarizers are used in spectrometers also can be used as polarization analyzers or beamsplitters in optical setups.


    Separate Unpolarized Light into Two Orthogonally Polarized Outputs
    High Extinction Ratio for Each Output
    Wide Wavelength Range
    Low Power Application
