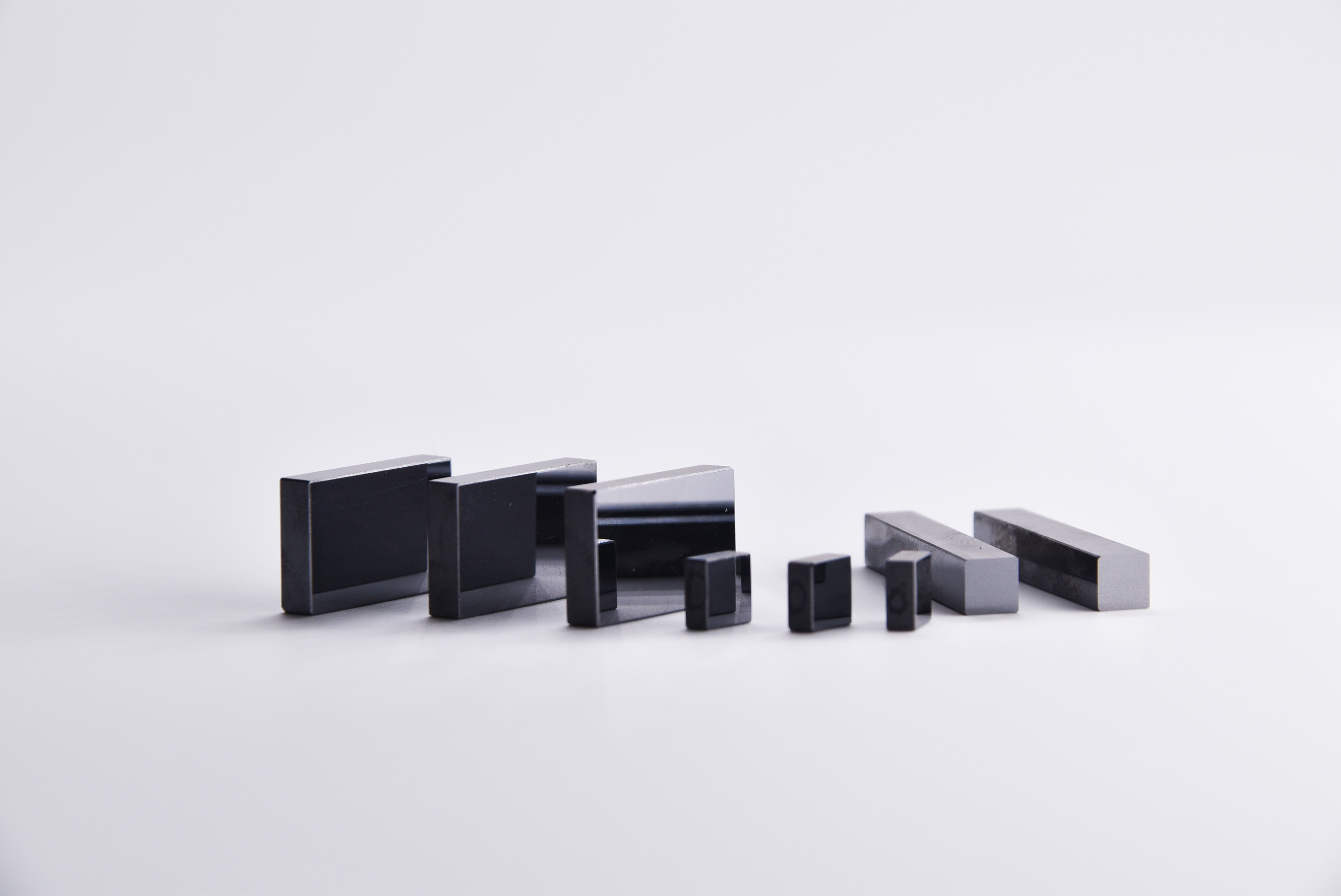

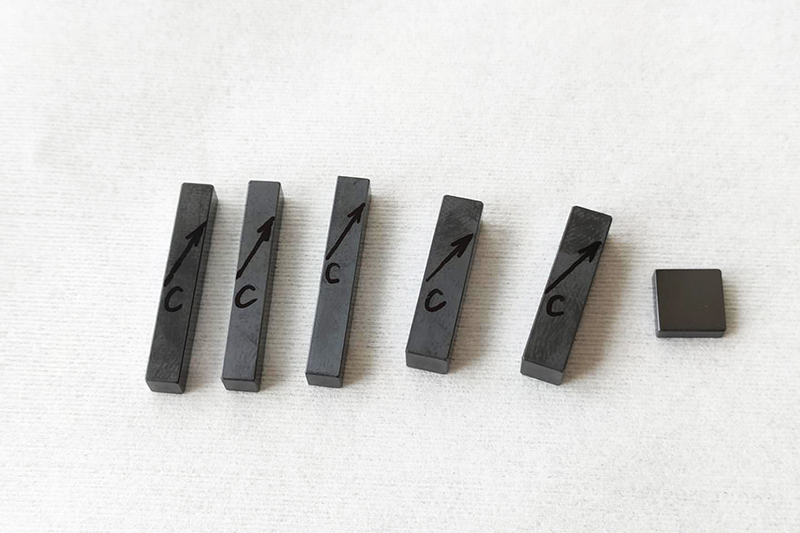

AGSe(AgGaSe2) Crystals

AGSe AgGaSe2 crystals have band edges at 0.73 and 18 µm. Its useful transmission range (0.9–16 µm) and wide phase matching capability provide excellent potential for OPO applications when pumped by a variety of different lasers. Tuning within 2.5–12 µm has been obtained when pumping by Ho:YLF laser at 2.05 µm; as well as non-critical phase matching (NCPM) operation within 1.9–5.5 µm  when pumping at 1.4–1.55 µm. AgGaSe2 (AgGaSe2) has been demonstrated to be an efficient frequency doubling crystal for infrared CO2 lasers radiation.


  • Crystal Structure: Tetragonal
  • Cell Parameters : a=5.992 Å, c=10.886 Å
  • Melting Point: 851 °C
  • Density : 5.700 g/cm3
  • Mohs Hardness: 3-3.5
  • Absorption Coefficient: <0.05 cm-1 @ 1.064 µm
    <0.02 cm-1 @ 10.6 µm
  • Relative Dielectric Constant @ 25 MHz: ε11s=10.5
    ε11t=12.0
  • Thermal Expansion Coefficient : ||C: -8.1 x 10-6 /°C
    ⊥C: +19.8 x 10-6 /°C
  • Thermal Conductivity : 1.0 W/M/°C
    • WhatsApp Download as PDF

    Product Detail

    Technical parameters

    Video

    Stock list

    DIEN TECH provide AgGaSe2 (AGSe) crystals have band edges at 0.73 and 18 µm. Its useful transmission range (0.9–16 µm) and wide phase matching capability provide excellent potential for OPO applications when pumped by a variety of different lasers.
    AgGaSe2 (AGSe) crystals tuning within 2.5–12 µm has been obtained when pumping by Ho:YLF laser at 2.05 µm; as well as non-critical phase matching (NCPM) operation within 1.9–5.5 µm  when pumping at 1.4–1.55 µm.
    AgGaSe2 (AGSe) crystals has been demonstrated to be an efficient frequency doubling crystal for infrared CO2 lasers radiation.

    Applications of AGSe:
    • Generation second harmonics on CO and CO2 - lasers
    • Optical parametric oscillator
    • Different frequency generator to middle infrared regions up to 18 um.
    • Frequency mixing in the middle IR region

    Standard cross sections are 8x 8mm, 5 x 5mm, Crystal length range from 1 to 30 mm. Custom sizes are also available on request.

    Basic properties
    Crystal Structure Tetragonal
    Cell Parameters a=5.992 Å, c=10.886 Å
    Melting Point 851 °C
    Density 5.700 g/cm3
    Mohs Hardness 3-3.5
    Absorption Coefficient <0.05 cm-1 @ 1.064 µm <0.02 cm-1 @ 10.6 µm
    Relative Dielectric Constant @ 25 MHz ε11s=10.5 ε11t=12.0
    Thermal Expansion Coefficient ||C: -8.1 x 10-6 /°C ⊥C: +19.8 x 10-6 /°C
    Thermal Conductivity 1.0 W/M/°C

    Linear Optical Properties
    Transparency Range

    0.73-18.0 um
    Refractive Indices @ 1.064 um @ 5.300 um @ 10.60 um

    no 2.7010 2.6134 2.5912

    ne 2.6792 2.5808 2.5579
    Thermo-Optic Coefficient

    dno/dt=15.0 x 10-5/°C dne/dt=15.0 x 10-5/°C
    Sellmeier Equations ( ʎ in um) no2=4.6453+2.2057/(1-0.1879/ʎ2)+1.8577/(1-1600/ʎ2) ne2=5.2912+1.3970/(1-0.2845/ʎ2)+1.9282/(1-16007/ʎ2)

    Nonlinear Optical Properties
    NLO Coefficients @ 10.6 um d36=d24=d15=39.5 pm/V
    Linear Electro-optic Coefficients Y41T=4.5 pm/V Y63T=3.9 pm/V
    Damage Threshold @ ~ 10 ns, 1.064 um 20-30 MW/cm2(surface)

    Technical Properties
    Dimension tolerance (W +/-0.1 mm) x (H +/-0.1 mm) x (L + 1 mm/-0.5 mm)
    Clear aperture > 90% central area
    Flatness λ/8 @ 633 nm for T>=1 mm
    Surface Quality Scratch/dig 60-40 after coating
    Parallelism better than 30 arc seconds
    Perpendicularity 10 arc minutes
    Orentation accuracy <30’’

    Model Product Size Orientation Surface Mount Quantity
    DE0688 AGSe 5*5*0.5mm θ=45°φ=45° Both sides polished Unmounted 1
    DE0160 AGSe 5*5*1.5mm θ=58.8°φ=0° Both sides polished Unmounted 2
    DE0161 AGSe 5*5*1.5mm θ=52°φ=45° Both sides polished Unmounted 1
    DE0324-2 AGSe 5*5*1mm θ=53.3°φ=0° Both sides polished Unmounted 2
    DE0324-3 AGSe 5*5*1mm θ=65°φ=0° Both sides polished Unmounted 2
    DE0687 AGSe 5*5*1mm θ=45°φ=45° Both sides polished Unmounted 1
    DE0324 AGSe 5*5*2mm θ=53.1°φ=45° Both sides polished Unmounted 1
    DE0464 AGSe 5*6*0.5mm θ=45°φ=45° AR/AR@1.7~2.8+6-14um Unmounted 3
    DE0464-1 AGSe 5*6*1mm θ=45°φ=45° AR/AR@1.7~2.8+6-14um Unmounted 2
    DE0442 AGSe 6*6*1.6mm θ=41.9°φ=45° Both sides polished Unmounted 2
    DE0139 AGSe 8*8*1.5mm θ=53.1°φ=45° Both sides polished Unmounted 1
    DE0214 AGSe 8*8*12mm θ=52°φ=45° AR/AR@1.7~2.8+6-14um Unmounted 1
    DE0372 AGSe 9.5*8*12mm θ=49°φ=45° AR/AR@1.7~2.8+6-14um Unmounted 1
