Glan Thompson Polarizer


  • Calcite GMP: Wavelength Range 350-2000nm
  • a-BBO GMP: Wavelength Range 200-900nm
  • Surface Quality: 20/10 Scratch/Dig
  • Beam Deviation: < 3 arc minutes
  • Wavefront Distortion: <λ/4@633nm
  • Damage Threshold: >100MW/cm2@1064nm, 20ns, 20Hz
  • Coating: P Coating Or AR Coating
  • Mount: Black Anodized Aluminium
  • Product Detail

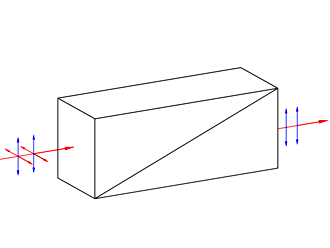

    Glan-Thompson polarizers consist of two cemented prisms made from the highest optical grade of calcite or a-BBO crystal. Unpolarized light enters the polarizer and is split at the interface between the two crystals. The ordinary rays are reflected at each interface, causing them to be scattered and partially absorbed by the polarizer housing. The extraordinary rays pass straight through the polarizer, providing a polarized output.

    Feature:

    Broadband low power polarizers for UV, visible or near IR wavelengths
    Large Acceptance Angle
    High Polarization Purity
    Low Power Application
