Glan Laser Polarizer


  • Calcite GLP: Wavelength Range 350-2000nm
  • a-BBO GLP: Wavelength Range 190-3500nm
  • YVO4 GLP: Wavelength Range 500-4000nm
  • Surface Quality: 20/10 Scratch/Dig
  • Beam Deviation: < 3 arc minutes
  • Wavefront Distortion: <λ/4@633nm
  • Damage Threshold: >500MW/cm2@1064nm, 20ns, 20Hz
  • Coating: P Coating Or AR Coating
  • Mount: Black Anodized Aluminium
  • Product Detail

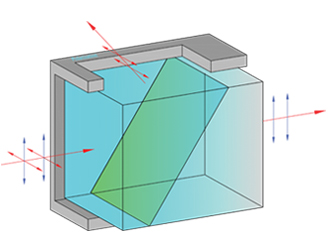

    Glan Laser prism polarizer is made of two same birefringent material prisms that are assembled with an air space. The polarizer is a modification of the Glan Taylor type and is designed to have less reflection loss at the prism junction. The polarizer with two escape windows allow the rejected beam to escape out of the polarizer, which makes it more desirable for high energy lasers. The surface quality of these faces is relatively poor as compared to that of entrance and exit faces. No scratch dig surface quality specifications are assigned to these faces.

    Feature

    Air-spaced
    Close to Brewster’s Angle Cutting
    High Polarization Purity
    Short Length
    Wide Wavelength Range
    Suitable for medium power application
