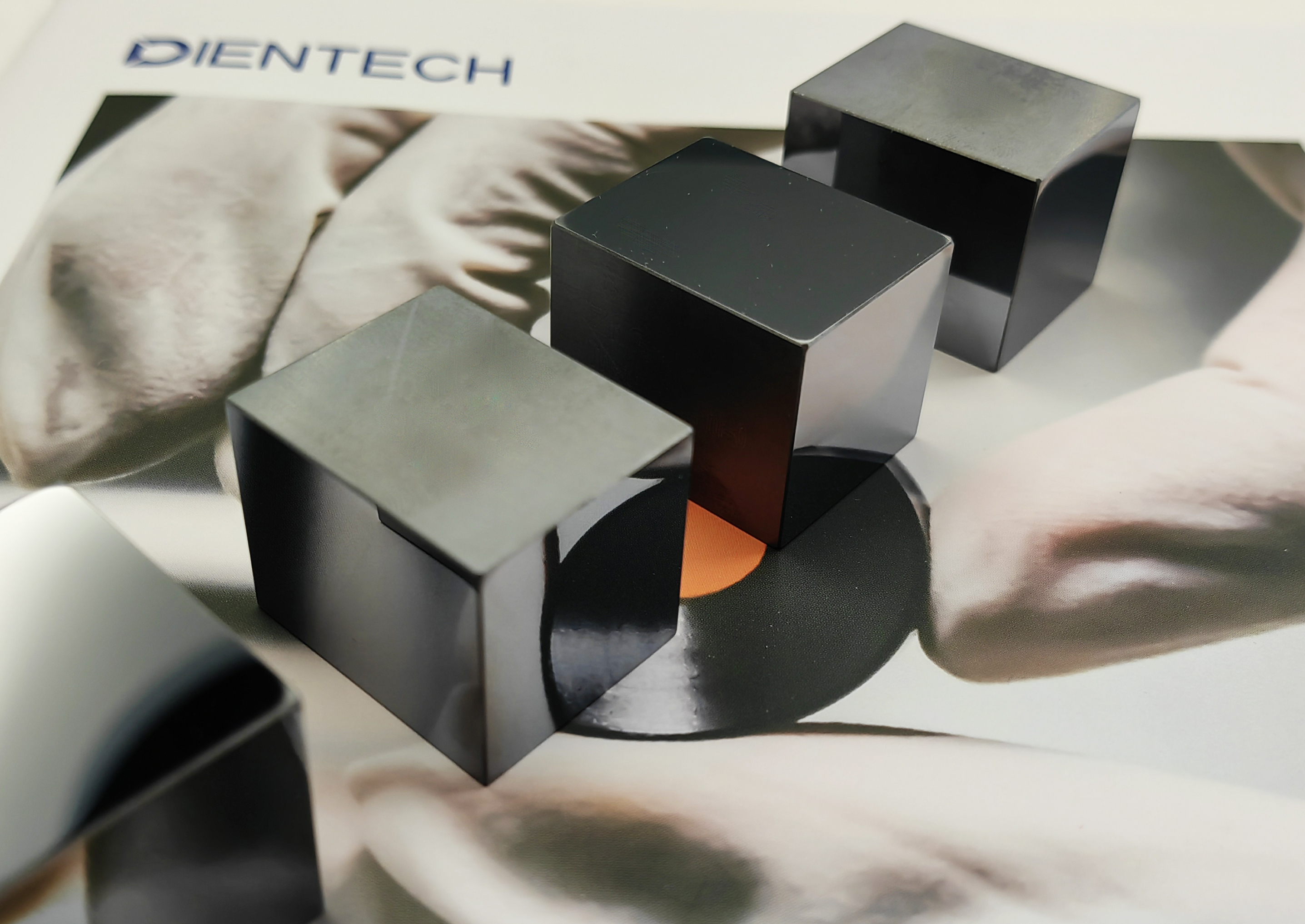

High homogeneity & Super large size ZnGeP2 crystals

25×25×30mm is demonstrated as the alternative perfect choice for high power middle infrared.

Compared to traditional ZGP( 6×6mm)crystals, DIEN TECH's 25×25mm ZGP crystal has achieved a leap forward in multiple core indicators through precision polishing and unique processes and formula while retaining its large-size.

Background

In the past a few years, ZnGeP2 crystal was challenged by size beyond 6mm width/high and maintain good homogeneity at the same time.DIEN TECH’s new developed YS-ZGP crystal (25×25mm) has shattered the long-standing performance limitations of conventional ZGP crystals (6×6mm) in the industry. Boasting core advantages of high uniformity and low absorption, this innovation represents a pivotal breakthrough for the industry.

Read More

Homogeneity

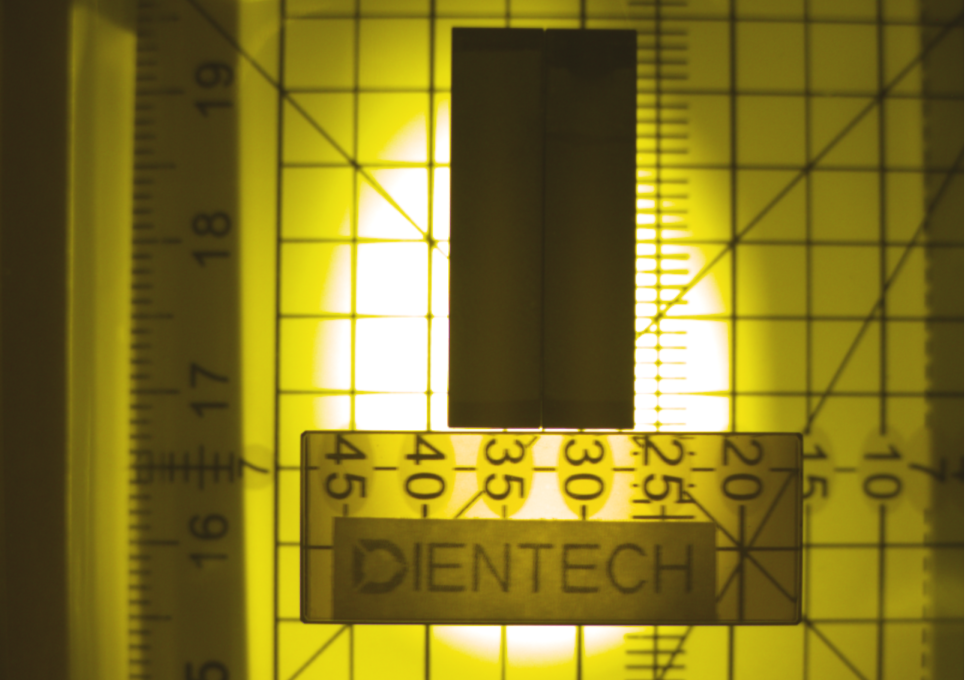

Upper two crystals are in size 6x6x20mm and down one is in size 25x25x30mm. Material absorption is significantly reduced,even at a size of 25×25mm. Through infrared camera, DIENTECH ‘s shows its outstanding advantage. And this properties also proved can generating higher conversion efficiency.

Read More

Low Absorption

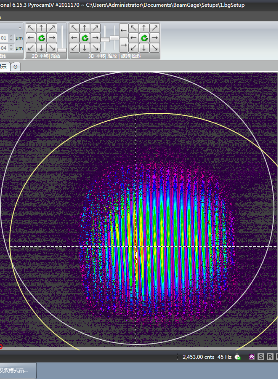

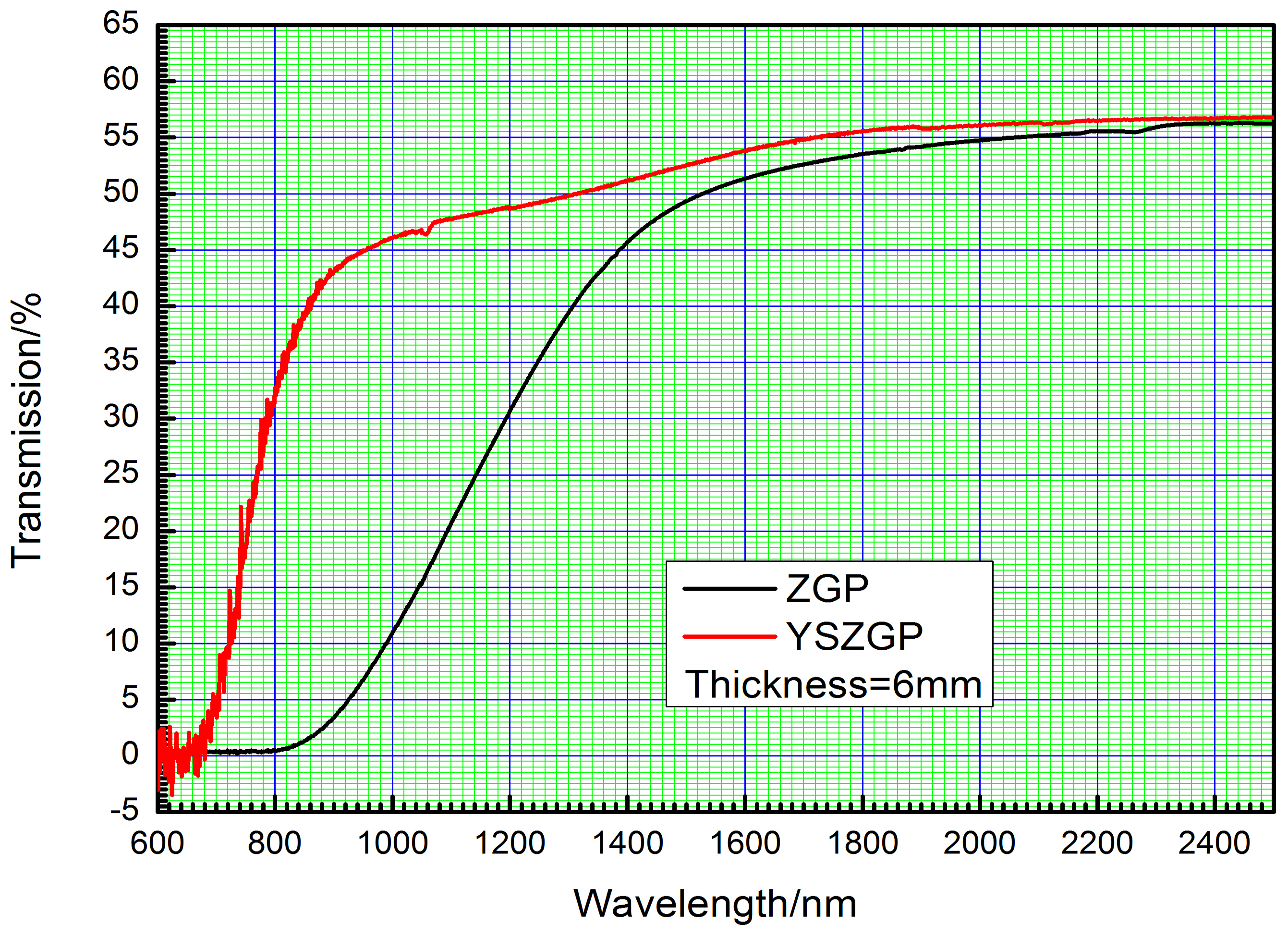

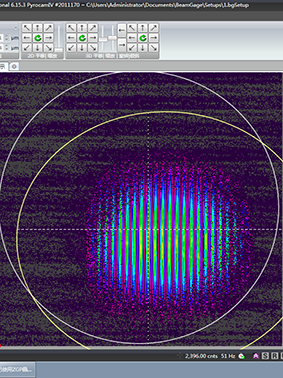

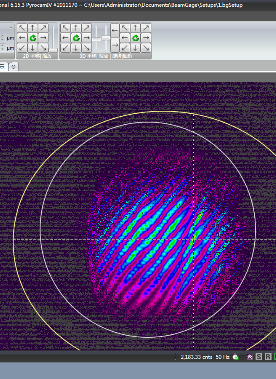

See above transmisson measure data in short wavelength before 1 micrometer and see below interferometer measurement confirm that refractive index deviation is controlled within an extremely narrow range, far exceeding the conventional standards of ZGP( 6×6mm)crystals This ensures beam transmission stability is enhanced significantly.

Read More

This cutting edge technology is a milestone for high power and high efficiency middle infrared OPO and OPA system. Not only addresses the urgent demand for large-sized crystals in high-power laser applications but also redefines industry standards for ZGP crystals with its "large yet precise" performance profile, offering an innovative and fundamental solution to the industry.

Post time: Jul-17-2025
