ZGP(ZnGeP2) Crystals

ZGP crystals possess large nonlinear coefficients (d36=75pm/V), wide infrared transparency range(0.75-12μm), high thermal conductivity(0.35W/(cm·K)), high laser damage threshold (2-5J/cm2)and well machining property, ZnGeP2 crystal was called the king of infrared nonlinear optical crystals and is still the best frequency conversion material for high power, tunable infrared laser generation. We can offer high optical quality and large diameter ZGP crystals with extremely low absorption coefficient α < 0.02 cm-1(at pump wavelengths 2.0-2.1 µm), which can be used to generate mid-infrared tunable laser with high efficiency through OPO or OPA processes.


  • Chemical: ZnGeP2
  • Density: 4.162  g/cm3
  • Mohs Hardness: 5.5
  • Optical Class: Positive uniaxial
  • Userful Transmission Range: 2.0 um - 10.0 um
  • Thermal Conductivity   @ T= 293 K: 35 W/m∙K (⊥c)
    36 W/m∙K ( ∥ c)
  • Thermal Expansion @ T = 293 K to 573 K: 17.5 x 106 K-1 (⊥c)
    15.9 x 106 K-1 ( ∥ c)
  • Product Detail

    Technical parameters

    Test report

    Video

    Stock list

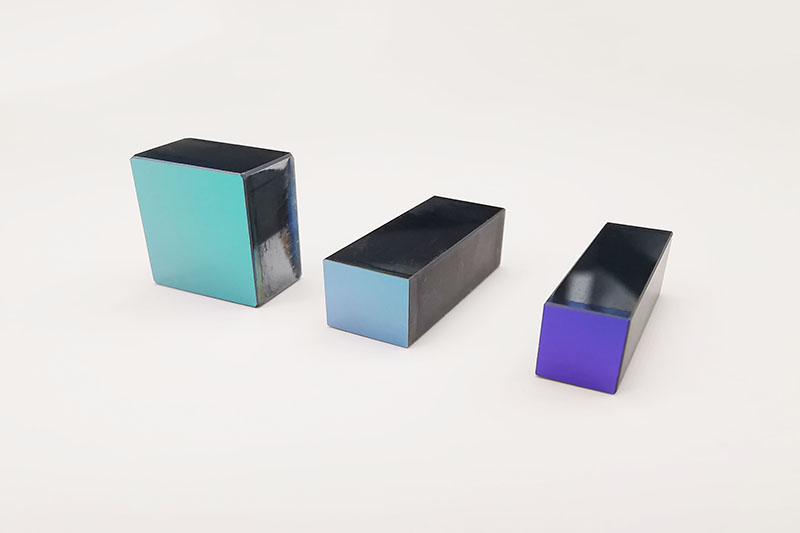

    Zinc Germanium Phosphide (ZGP) crystals possess large nonlinear coefficients (d36=75pm/V). Our ZGP has wide infrared transparency range(0.75-12μm), useful transmission from 1.7um. ZGP also shows high thermal conductivity(0.35W/(cm·K)), high laser damage threshold (2-5J/cm2)and well machining property.

    ZnGeP2 (ZGP) crystal is called the king of infrared nonlinear optical crystals and it is still the best frequency conversion material for high power, tunable infrared laser generation. DIEN TECH offers high optical quality and large diameter ZGP crystals with extremely low absorption coefficient α < 0.02 cm-1(at pump wavelengths 2.0-2.1 µm). These properties enable ZGP crystals to be used to generate mid-infrared tunable laser with high efficiency through OPO or OPA processes.

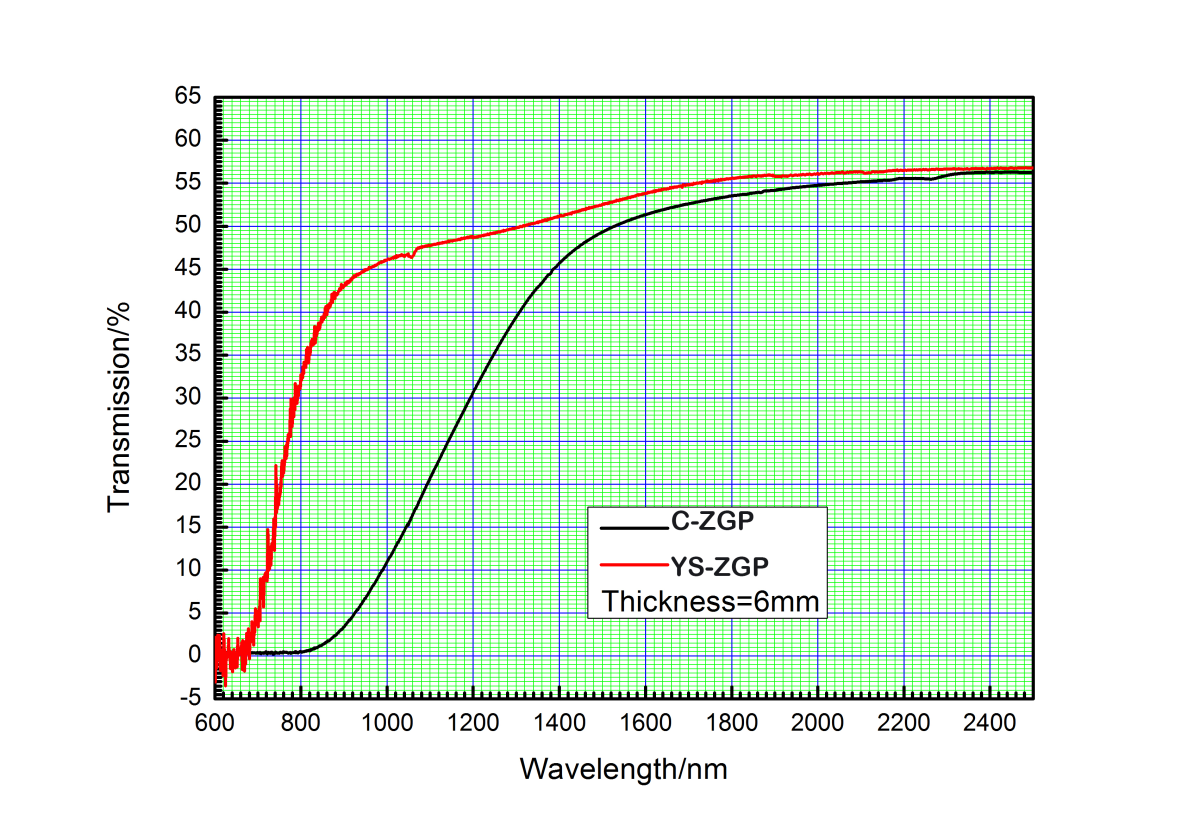

    DIEN TECH provides two types of ZnGeP2 crystal, C-ZGP and YS-ZGP.  YS-ZGP shows lower absorption at 2090nm than C-ZGP. C-ZGP absorption coefficient at 2090nm <0.05cm-1 while YS-ZGP absorption coefficient at 2090nm <0.02cm-1 . C-ZGP grew by vertical method while YS-ZGP grew by horizontal method. Also, YS-ZGP shows better homogeneity and output efficiency as well.

    Applications of ZGP:

    • Second, third, and fourth harmonic generation of CO2-laser.

    • Optical parametric generation with pumping at a wavelength of 2.0 µm.

    • Second harmonic generation of CO-laser.

    • YS-ZGP are typical material for THz range from 40.0 µm to 1000 µm, pumped by 1um.

    • Generation of combined frequencies of CO2- and CO-lasers radiation and other lasers are working in the crystal transparency region.



    Custom orientations of our ZGP crystals are available on request.

    Basic Properties

    Chemical ZnGeP2
    Crystal Symmetry and Class Tetragonal, -42m
    Lattice Parameters a = 5.467 Å
    c = 12.736 Å
    Density 4.162 g/cm3
    Mohs Hardness 5.5
    Optical Class Positive uniaxial
    Userful Transmission Range 2.0 um – 10.0 um
    Thermal Conductivity @ T= 293 K 35 W/m∙K (⊥c) 36 W/m∙K ( ∥ c)
    Thermal Expansion @ T = 293 K to 573 K 17.5 x 106 K-1 (⊥c) 15.9 x 106 K-1 ( ∥ c)
    Technical Parameters
    Surface flatness PV<ʎ/8@632.8nm
    Surface quality S-D 20-10
    Wedge/Parallelism error <30 arc sec
    Perpendicularity <5 arc min
    Transparency range 0.75 – 12.0
    Non-linear coefficient d36= 68.9 (at 10.6 um),d36= 75.0 (at 9.6 um)

    atsdf

    Model

    Product

    Size

    Orientation

    Surface

    Mount

    Quantity

    BMP000073

    ZnGeP2

    6*6*20mm

    θ=56.8°φ=0°

    Both sides polished

    Unmounted

    2

    BMP000079

    ZnGeP2

    6*8.5*0.035mm

    θ=48.4°φ=0°

    Both sides polished

    Unmounted

    1

    BMP000080

    ZnGeP2

    6*6*30mm

    θ=54.7°φ=0°

    Both sides polished

    Unmounted

    3

    BMP000091

    ZnGeP2

    6*6*20mm

    θ=59°φ=0°

    Both sides polished

    Unmounted

    1

    BMP000144

    ZnGeP2

    5*5*1mm

    θ=51° φ=0°

    Both sides polished

    Unmounted

    12

    BMP000324M

    ZnGeP2

    5*5*0.5mm

    θ=51°φ=0° Type I

    Both sides polished

    φ25.4mm

    17

    BMP000325M

    ZnGeP2

    5*5*0.25mm

    θ=51°φ=0° Type I

    Both sides polished

    φ25.4mm

    9

    BMP000413

    ZnGeP2

    6*8*20mm

    θ=54.0°,φ=0°

    Both sides polished

    Unmounted

    1

    BMP000463

    ZnGeP2

    6*8*20mm

    θ=60°φ=0°

    Both sides polished

    Unmounted

    2

    CM000016

    ZnGeP2

    6*6*25mm

    θ=50.5°φ=0°

    AR/AR@2090nm(R<0.25%)+3-5um(R<1%)

    Unmounted

    1

    CM000017

    ZnGeP2

    6*6*30mm

    θ=54.5°φ=0°

    AR/AR@2.1um+3-5um

    Unmounted

    2

    CM000018

    ZnGeP2

    6*6*30mm

    θ=54.7°φ=0°

    AR/AR@2090nm+3-5μm

    Unmounted

    3

    CM000019

    ZnGeP2

    6*6*20mm

    θ=54.7°φ=0°

    AR/AR@2090nm(R<0.25%)+3-5um(R<1%)

    Unmounted

    6

    CM000028

    ZnGeP2

    6*6*25mm

    θ=57.5°φ=0°

    AR/AR@2.1um+3-5um

    Unmounted

    1

    CM000029

    ZnGeP2

    6*8*15mm

    θ=54°φ=0°

    AR/AR@2090nm(R<0.25%)+3-5um(R<1%)

    Unmounted

    1

    CM000030

    ZnGeP2

    12*12*15mm

    θ=54.7°φ=0°

    AR/AR@2090nm+3-5μm

    Unmounted

    1

    CM000031

    ZnGeP2

    6*8*20mm

    θ=54°φ=0°

    AR/AR@2090nm(R<0.25%)+3-5um(R<1%)

    Unmounted

    6

    CM000068

    ZnGeP2

    8*8*20mm

    θ=54.7°φ=0°

    AR/AR@2090nm(R<0.25%)+3-5um(R<1%)

    Unmounted

    1

    CM000081M

    ZnGeP2

    15*15*1.5mm

    θ=48.6°φ=0°

    AR/AR@2-3.3μm(R<2%)+7-12μm(R<5%)

    φ25.4mm

    1

    CM000082

    ZnGeP2

    15*15*2.5mm

    θ=48.6°φ=0°

    AR/AR@2-3.3μm(R<2%)+7-12μm(R<5%)

    Unmounted

    1

    CM000083

    ZnGeP2

    15*15*0.5mm

    θ=48.6°φ=0°

    AR/AR@1.8-3.5um+5-11um

    Unmounted

    2

    CM000084M

    ZnGeP2

    15*15*1mm

    θ=48.6°φ=0°

    AR/AR@1.8-3.5um+5-11um

    φ25.4mm

    1

    CM000088

    ZnGeP2

    8*8*4mm

    θ=57.5°φ=0°

    AR/AR@1.7-3um+5-13um

    Unmounted

    2

    CM000190

    ZnGeP2

    6*6*5mm

    θ=48°φ=0°

    AR/AR@2-3um+5-9um

    Unmounted

    1

    CM000191

    ZnGeP2

    6*6*20mm

    θ=57.5°φ=0°

    AR/AR@2090nm(R<0.25%)+3-5um(R<1%)

    Unmounted

    1

    CM000206

    ZnGeP2

    6*6*15mm

    θ=54.7°φ=0°

    AR/AR@2.1um+3-5um

    Unmounted

    3

    CM000226

    ZnGeP2

    6*6*27mm

    θ=50.11°φ=0°

    AR/AR@2.09+2.8+8um T=47.8%

    Unmounted

    1

    CM000227

    ZnGeP2

    6*6*27mm

    θ=50.5°φ=0°

    AR/AR@2.09+2.8+8um

    Unmounted

    1

    CM000228

    ZnGeP2

    6*6*27mm

    θ=51.2°φ=0°

    AR/AR@2.09+2.8+8um

    Unmounted

    1

    CM000255

    ZnGeP2

    6*6*40mm

    θ=54.7°φ=0°

    AR/AR@2.1μm+3-5μm

    Unmounted

    1

    CM000261

    ZnGeP2

    5*5*20mm

    θ=67°φ=0°

    AR/AR@5um+10um

    Unmounted

    1

    CM000336

    ZnGeP2

    8*8*4mm

    θ=57.5°φ=0°

    S1:AR@1.3-2.6um S2:AR@3.5-10um

    Unmounted

    3

    CM000337

    ZnGeP2

    8*8*1mm

    θ=57.5°φ=0°

    S1:AR@1.3-2.6um S2:AR@3.5-10um

    Unmounted

    2

    CM000565

    ZnGeP2

    8*8*7.5mm

    θ=57.5°φ=0°

    AR/AR@1.7-3um+5-13um

    Unmounted

    1

    CM000586

    ZnGeP2

    7*7*20mm

    θ=62°φ=0°

    AR/AR@1.8-4.2um

    Unmounted

    1

    CM000621

    ZnGeP2

    8*6*8.5mm

    θ=55°φ=0°

    AR/AR@2.09um(R<0.5%)+3.5-5um(R<1%)

    Unmounted

    1

    CM000675

    ZnGeP2

    6*6*25mm

    θ=50.4°φ=0°

    AR/AR@2090+2800+8um

    Unmounted

    1

    CM000751

    ZnGeP2

    6*8*20mm

    θ=60°φ=0°

    AR/AR@1938+3000-5000nm

    Unmounted

    1

    CM000799

    ZnGeP2

    6*6*20mm

    θ=56.2°φ=0°

    AR/AR@1.9μm-2.1μm+3.8μm-4.5μm

    Unmounted

    1

    CM000900

    ZnGeP2

    5*5*1mm

    θ=51°φ=0° Type 1

    S1:AR@1-4um(R<8%) S2:AR@3-12um(R<10%)

    Unmounted

    2

    CM000912

    ZnGeP2

    6*6*20mm

    θ=55 °, φ=0°

    AR/AR@2.05µm+3-5µm

    Unmounted

    1

    CM000985

    ZnGeP2

    5*5*1mm

    θ=51°Φ=0°

    S1:AR@1000-3500nm S2:AR@3000-12000nm

    Unmounted

    1

    CM000986

    ZnGeP2

    5*5*1.5mm

    θ=51°Φ=0°

    S1:AR@1000-3500nm S2:AR@3000-12000nm

    Unmounted

    1

    CM001049

    ZnGeP2

    6*6*25mm

    θ=54.7°φ=0°

    AR/AR@2.1+3-5um

    Unmounted

    2

    CM001058

    ZnGeP2

    6*6*20mm

    θ=54.7°φ=0°

    AR/AR@2.1+3-5um

    Unmounted

    1

    CM001066M

    ZnGeP2

    φ5*1mm

    θ=51°Φ=0°

    S1:AR@1000-3500nm S2:AR@3000-12000nm

    φ25.4mm

    1
