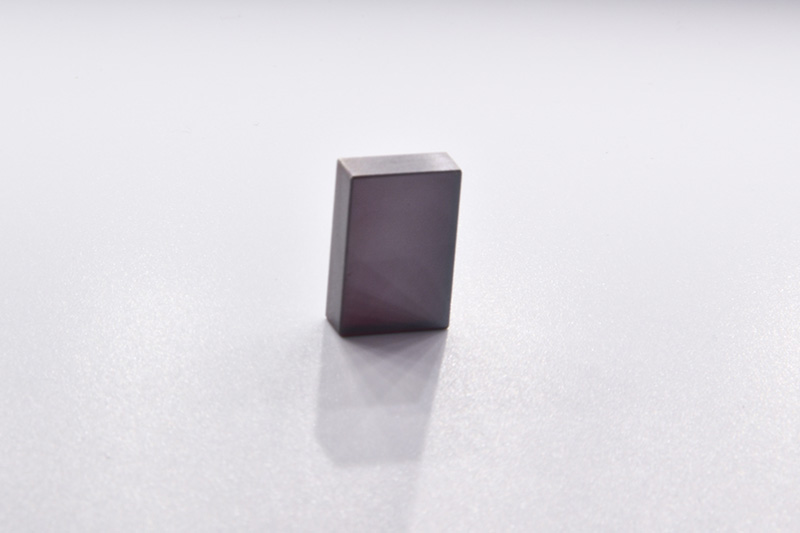

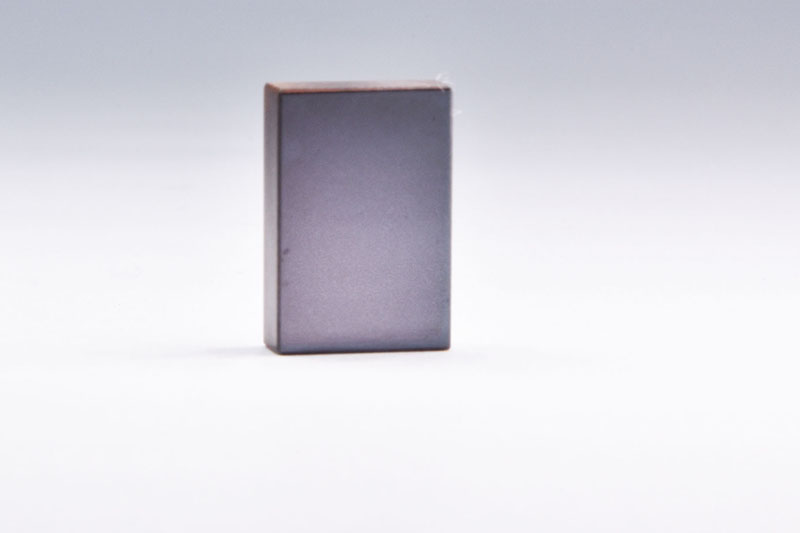

AGGSe(AgGaGe5Se12) Crystals

AgGaGe5Se12 is a promising new nonlinear optical crystal for frequency-shifting 1um solid state lasers into the mid-infrared (2-12mum) spectral range.

Dimension tolerance: (W +/-0.1 mm) x (H +/-0.1 mm) x (L + 1 mm/-0.5 mm)

Clear aperture: > 90% central area

Flatness: λ/8 @ 633 nm for T>=1 mm

Surface Quality: Scratch/dig 60-40 after coating

Parallelism: better than 30 arc seconds

Perpendicularity: 10 arc minutes

Orentation accuracy: <30’’

WhatsApp Send email to us Download as PDF

Product Detail

Technical parameters

Test report

Stock List

AgGaGe5Se12 is a promising new nonlinear optical crystal for frequency-shifting 1um solid state lasers into the mid-infrared (2-12mum) spectral range.
Because of its higher damage threshold, larger birefringence and bandgap, and greater variety of phase-matching schemes, AgGaGe5Se12 could become an alternative to AgGaS2 and AgGaSe2,more widely used in high-power and specifific applications.

Technical Properties
Dimension tolerance	(W +/-0.1 mm) x (H +/-0.1 mm) x (L + 1 mm/-0.5 mm)
Clear aperture	> 90% central area
Flatness	λ/8 @ 633 nm for T>=1 mm
Surface Quality	Scratch/dig 60-40 after coating
Parallelism	better than 30 arc seconds
Perpendicularity	10 arc minutes
Orentation accuracy	<30’’

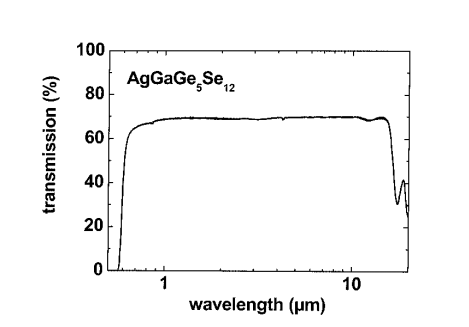

Compare with AgGaS2, ZnGeP2, AgGaSe2, GaSe crystal, the properties shown as follows:

Crystal	Tansparency range	Nonlinear Coefficient
AgGaS2	0.53-12um	d36=23.6
ZnGeP2	0.75-12um	d36=75
AgGaSe2	0.9-16um	d36=35
AgGaGe5Se12	0.63-16um	d31=28
GaSe	0.65-19um	d22=58

20210122163152

Model	Product	Size	Orientation	Surface	Mount	Quantity
BMB000023	AgGaGe5Se12	551.5mm	θ=65°φ=0°	Blank	Unmounted	3
BMB000031	AgGaGe5Se12	5.55.53.5mm	θ=67°φ=0°	Blank	Unmounted	10
BMP000020	AgGaGe5Se12	550.35mm	θ=65°φ=0°	Polished,uncoated	Unmounted	2
CM001260	AgGaGe5Se12	5.255.518.55mm	θ=63°φ=0°	S1:HT@800-1500nm(R＜1%)S2:HT@1064nm(R＜1%)+1550nm(R＜1%)+5-14μm(R＜3%)	Unmounted	1
CM001262	AgGaGe5Se12	5.725.5813.7mm	θ=61°φ=0°	S1:HT@800-1500nm(R＜1%)S2:HT@1064nm(R＜1%)+1550nm(R＜1%)+5-14μm(R＜3%)	Unmounted	1
CM001263	AgGaGe5Se12	5.715.2913.68mm	θ=61φ=0°	S1:HT@800-1500nm(R＜1%)S2:HT@1064nm(R＜1%)+1550nm(R＜1%)+5-14μm(R＜3%)	Unmounted	1
