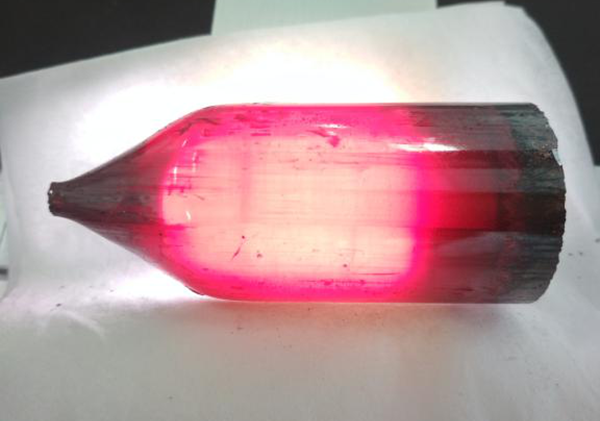

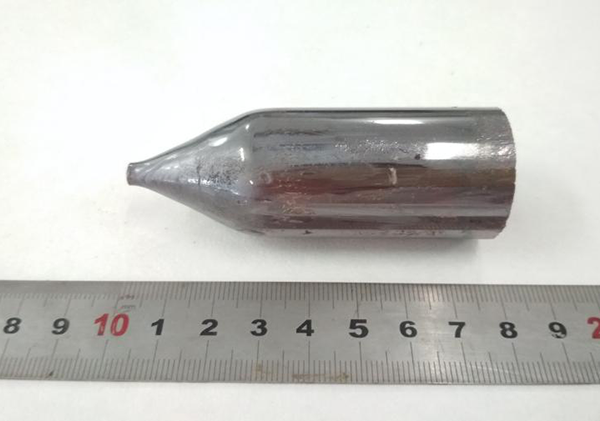

After one year of hard working, we've grown GaSe crystal with excellent quality successfully.
Our technology is able to provide GaSe crystal with large aperture and thin thickness.
Gallium Selenide (GaSe) non-linear optical single crystal, combining a large non-linear coefficient, a high damage threshold and a wide transparency range. It is a is very suitable material for SHG in the mid-IR. The frequency-doubling properties of GaSe were studied in the wavelength range between 6.0 µm and 12.0 µm. GaSe has been successfully used for efficient SHG of CO2 laser (up to 9% conversion); for SHG of pulsed CO, CO2 and chemical DF-laser (l = 2.36 µm) radiation; upconversion of CO and CO2 laser radiation into the visible range; infrared pulses generation via difference frequency mixing of Neodymium and infrared dye laser or (F-)-centre laser pulses; OPG light generation within 3.5–18 µm; terahertz (T-rays) radiation generation. It is impossibile to cut crystals for certain phase matching angles because of material structure (cleave along (001) plane) limiting areas of applications.

news02

news02

news02

news02

Applications

Efficient SHG of CO 2 laser (up to 9% conversion);

For SHG of pulsed CO, CO2 and chemical DF-laser (l = 2.36 mkm) radiation;

Upconversion of CO and CO2 laser radiation into the visible range; infrared pulses generation via difference frequency mixing of Neodymium and infrared dye laser or (F-)-centre laser pulses;

OPG light generation within 3.5 - 18 um.

Post time: Aug-31-2018
