ZGP crystals possessing large nonlinear coefficients (d36=75pm/V), wide infrared
transparency range(0.75-12μm), high thermal conductivity(0.35W/(cm·K)), high laser
damage threshold (2-5J/cm2)and well machining property, ZnGeP2 crystal was called the king of infrared nonlinear optical crystals and is still the best frequency conversion material for high power, tunable infrared laser generation.

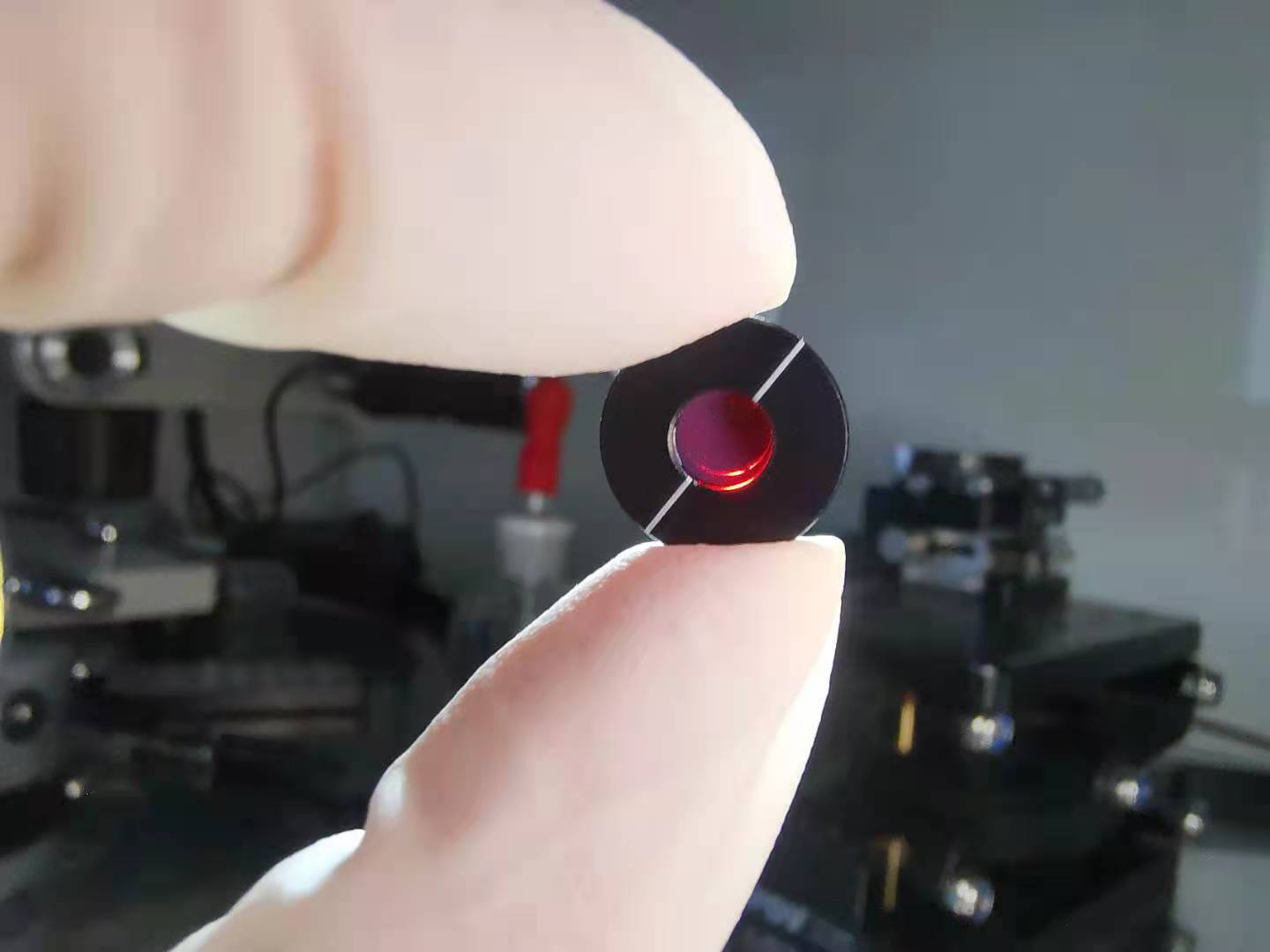

We can offer high optical quality and large diameter ZGP crystals with extremely low
absorption coefficient α < 0.05 cm-1(at pump wavelengths 2.0-2.1 µm), which can be used to generate mid-infrared tunable laser with high efficiency through OPO or OPA processes.
Applications:
• Second, third, and fourth harmonic generation of CO2-laser.
• Optical parametric generation with pumping at a wavelength of 2.0 µm.
• Second harmonic generation of CO-laser.
• Producing coherent radiation in submillimeterrange from 70.0 µm to 1000 µm.
• Generation of combined frequencies of CO2- and CO-lasers radiation and other lasers are working in the crystal transparency region.
Dimensions:
Standard cross sections are 6 x 8mm, 5 x 5mm, 8 x 12mm. Crystal length range from 1 to 50 mm. Custom sizes are also available on request.
Orientation:
The standard ZGP crystal orientation is for type I phase matching at an angle of θ= 54° , which is suitable
for use in OPO pumped at wavelengths between 2.05um and 2.1um to generate mid-infrared output
between 3.0um and 6.0um. Custom orientations are available on request.
